Ton & Rohstoffe

Brennfarbe Creme

weiß, unschamottiert. Die Masse enthält Zusätze von Zellulose sowie Konservierungsmittel.

Drehmasse und auch als Modelliermasse geeignet. Brennfarbe sehr weiss, translucent. Geeignet für oxidierenden und reduzierenden Brand. Sehr gute Stabilitäts-Eigenschaften auch bei maximaler Temperatur.

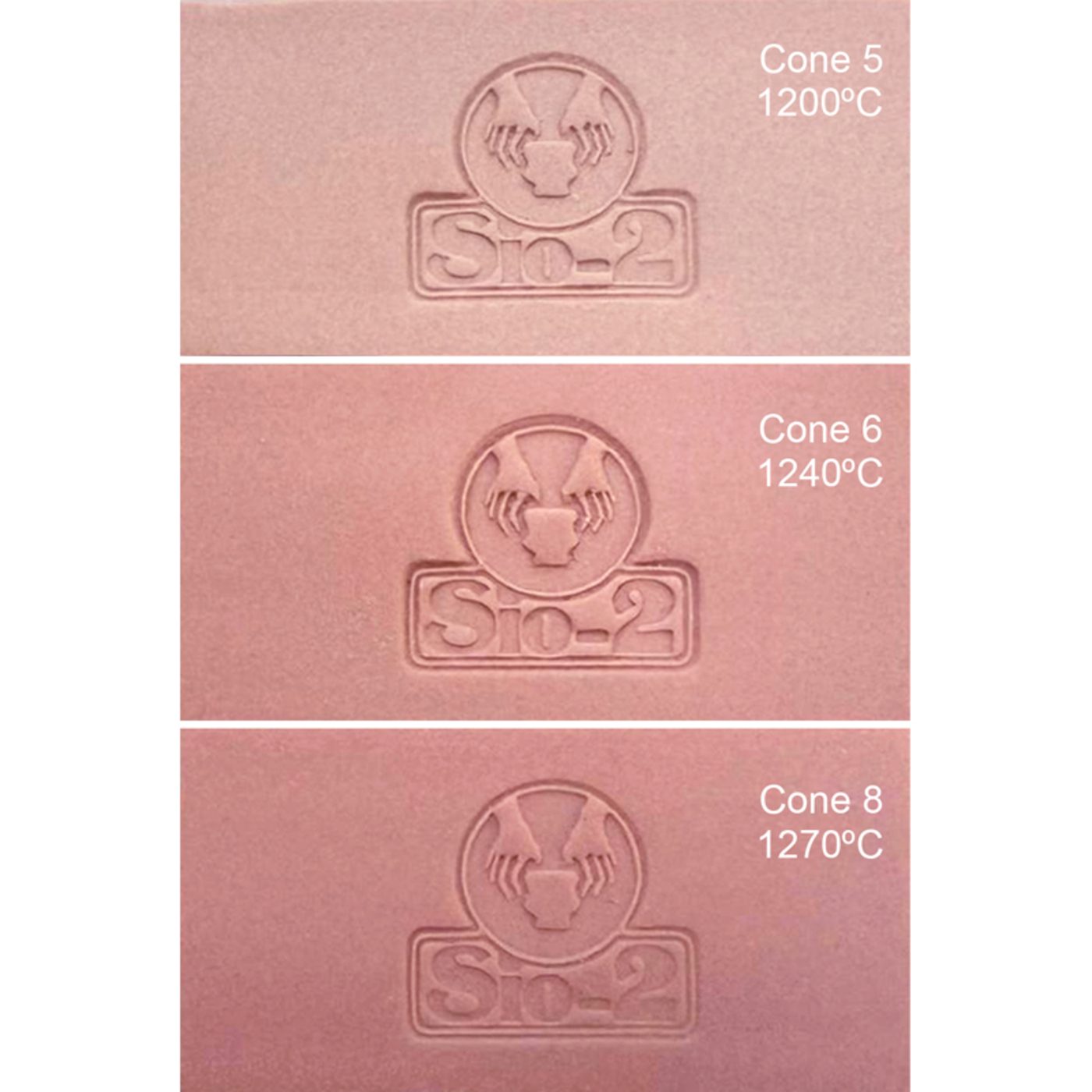

The landscape of the Costa Brava in Catalonia (Spain) is shaped by light, sea and rock. Along its coves and cliffs, the granite often reveals subtle pink tones created by feldspar crystals, giving the rock a warm and distinctive character. From this natural inspiration comes BEGUR, a porcelain developed to reflect the tones of these Mediterranean rocks. BEGUR is a rose porcelain clay designed for ceramic artists who value both beauty and reliability in their materials. Its delicate pink tone appears during firing and remains soft and natural, ideal for pieces where colour adds a warm and balanced character. Technically, BEGUR offers excellent plasticity, allowing smooth work on the wheel as well as precise hand modelling. The clay responds in a controlled and predictable way, providing a pleasant working experience for both professional ceramists and advanced students. Its stable formulation ensures a safe firing range between 1200 and 1240 °C (oxidising atmosphere), maintaining colour consistency and excellent mechanical strength once fired. This makes BEGUR suitable not only for artistic work but also for functional ceramics and tableware, complying with ISO 6486 food-safe standards. The porcelain is supplied as an extruded plastic clay body, presented in 5 kg cylindrical packages, packed in a cardboard box, ready to use in the studio. With BEGUR, ceramic pieces gain a subtle warmth inspired by Mediterranean stone — a material that combines natural elegance, technical reliability and the timeless beauty of porcelain.

gut verdrehbar, modellierfähig!

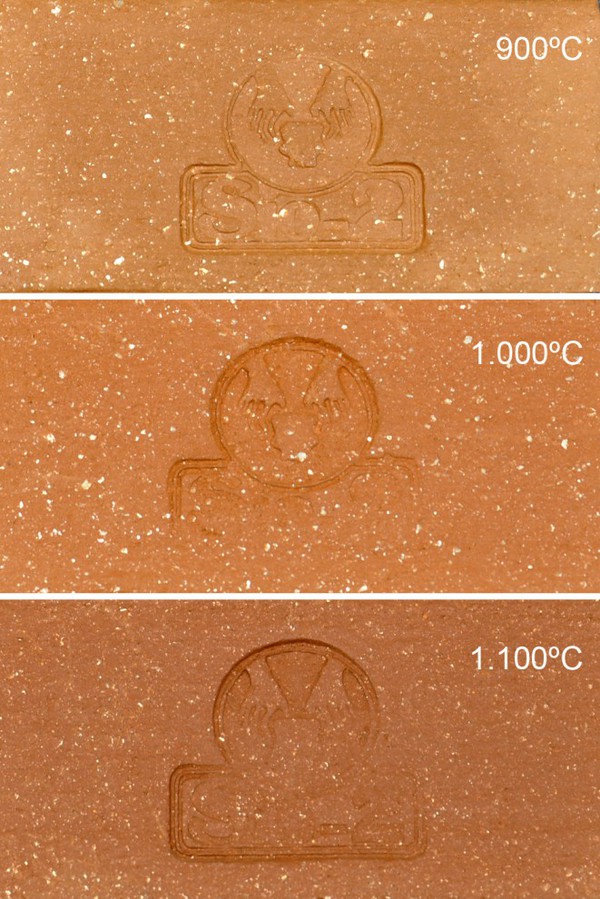

Apaches Glimmer. Das Rezept dieses Tons stammt aus dem Apache-Abstammung, Felipe Ortega, in New Mexico, platziert und reproduziert die alte Tradition der keramischen Ton Keramik vor über 400 Jahren. Der Körper besteht aus weißem Glimmer und niedrigen Koeffizienten roten Tönen. Glimmer verleiht Elastizität und macht Keramik sofort identifizierbar. Sein ursprünglicher Apache-Charakter wird nach Holzfeuerung erreicht.

Glimmer, Katzengold ähnlich, geeignet für Feuerschalen, Lehmöfen

Grey sculpture clay with 40% coarse grog 0-1.5 mm (up to 12 Mesh). Formulated for artistic and decorative ceramics, it is ideal for sculpture and pieces for outdoors (garden pots, tiles, etc.). The high content of grog confers a beautiful textured surface and an excellent behaviour during drying and firing. Depending on the firing temperature, it develops an interesting range of greys, from cement to dark grey, which satisfies the most avant-garde trends in artistic and decorative ceramics. Available in extruded body (moist form). Firing range*: 1200-1300ºC/ Cone 5-10 Biscuit temperature: 1000ºC Water content: 17% Plasticity (IP Atterberg): 16 Carbonate content (CaCO3): 0% Drying shrinkage: 5.1% Firing shrinkage 1300ºC: 3.9% Porosity (water absorption) at 1300ºC: 4.8% Dry bending strength: 2.3 N/mm2 Fired bending strength 1300ºC: 21.1 N/mm2 Thermal coefficient 1250ºC (25-500ºC): 64.5x10^-7ºC^-1 (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.

CELLULAIN® is a translucent white porcelain paper clay which stands out for its high plasticity, what makes it exceptional for modelling. It is especially designed for creating impossible shapes with porcelain. The presence of paper fibres inside avoid formation of cracks and deformations problems. Its formula is very stable and provides a secure firing range between 1230 and 1270ºC. Suitable for tableware (food-safe), according to ISO 6486. Available in extruded body. Presented in a 5 kg cylindrical format in a carton box. Firing range*: 1230-1270ºC / Cone 6-8 Biscuit temperature: 1050ºC / Cone 05 Water content: 27% Plasticity (IP Atterberg): 11 Carbonate content (CaCO3): 0% Drying shrinkage: 5.1% Firing shrinkage 1250ºC: 11.4% Porosity (water absorption) at 1250ºC: 2.8% Dry bending strength: 4.5 N/mm2 Fired bending strength 1250ºC: 21.0 N/mm2 Thermal coefficient 1250ºC (25-500ºC): 64.1x10-7ºC-1 Available in the United States and Canada. ACMI AP Seal. Conforms to ASTM D-4236. (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.

JADE is a super translucent porcelain from the city of Jingdezhen, the world capital of porcelain and cradle of Chinese imperial porcelain for 1,700 years. It is characterized by its extraordinary translucency and whiteness. It is ideal for decorative porcelain and tableware. Suitable for tableware (food-safe), according to ISO 6486. Available in extruded body (moist form). Presented in a 5 kg cylindrical format in a carton box. Firing range*: 1260-1290ºC Biscuit temperature: 1000ºC Water content: 24% Plasticity (IP Atterberg): 9 Carbonate content (CaCO3): 0% Drying shrinkage: 5.9% Firing shrinkage 1270ºC: 12.6% Porosity (water absorption) 1270ºC: 0.0% Dry bending strength: 2.4 N/mm2 Fired bending strength 1270ºC: 44.0 N/mm2 Thermal coefficient 1270ºC (25-500ºC): 71.2x10^-7ºC^-1 (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.

LOTUS is an extra white porcelain from the city of Jingdezhen, the world capital of porcelain and cradle of Chinese imperial porcelain for 1,700 years. It is characterized by its extraordinary whiteness and is ideal for tableware and decorative porcelain. Suitable for tableware (food-safe), according to ISO 6486. Available in extruded body (moist form). Presented in a 5 kg cylindrical format in a carton box. Firing range*: 1260-1290ºC Biscuit temperature: 1000ºC Water content: 24% Plasticity (IP Atterberg): 9 Carbonate content (CaCO3): 0% Drying shrinkage: 6.3% Firing shrinkage 1270ºC: 10.3% Porosity (water absorption) 1270ºC: 0.0% Dry bending strength: 2.3 N/mm2 Fired bending strength 1270ºC: 48.0 N/mm2 Thermal coefficient 1270ºC (25-500ºC): 74.5x10^-7ºC^-1 (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.

Blue earthenware clay. Its blue colour in oxidising atmosphere is a highlight in the range of low firing colours. Its fineness and plasticity make it an excellent choice for wheel- throwing and modelling. Very good behaviour with standard pottery glazes. Available in extruded body (moist form). Firing range*: 1050-1080ºC / Cone 05-04 Water content (throwing): 19% Plasticity (IP Atterberg): 15 Carbonate content (CaCO3): 16% Drying shrinkage: 5.0% Firing shrinkage 1050ºC: -0.3% Porosity (water absorption) 1050ºC: 12.4% Dry bending strength: 4.1 N/mm2 Fired bending strength 1050ºC: 37.4 N/mm2 Thermal coefficient 1050ºC (25-500ºC): 73.7x10^-7ºC^-1 (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.

Green earthenware clay. Its green colour in oxidising atmosphere is a highlight in the range of low firing colours. Its fineness and plasticity make it an excellent choice for wheel- throwing and modelling. Very good behaviour with standard pottery glazes. Available in extruded body (moist form). Firing range*: 1050-1080ºC / Cone 05-04 Water content (throwing): 19% Plasticity (IP Atterberg): 15 Carbonate content (CaCO3): 16% Drying shrinkage: 5.1% Firing shrinkage 1050ºC: -0.1% Porosity (water absorption) 1050ºC: 12.8% Dry bending strength: 4.3 N/mm2 Fired bending strength 1050ºC: 36.1 N/mm2 Thermal coefficient 1050ºC (25-500ºC): 72.2x10^-7ºC^-1 (*) Firing range recommended for the clay to develop its best performance, both in terms of technical and safety characteristics, under conventional firing conditions. The colour samples may show temperatures outside the recommended range to provide a broader view, but these are pieces fired under controlled conditions. Cone equivalence according to Orton table for self-supporting cones, regular-SSB and 150ºC/hr heating rate.
